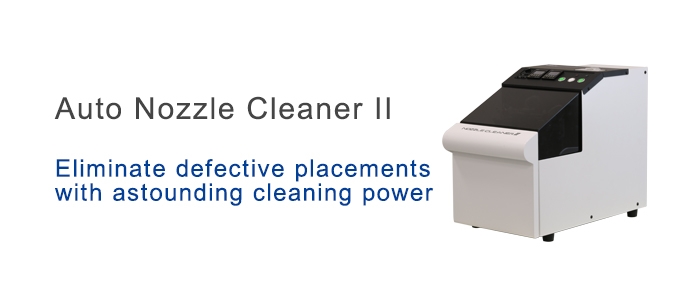

Features

Makes nozzles in top condition

Nozzles are an extremely important element in production and they must be keep in the good condition.
This unit automates the tedious and time consuming work of cleaning nozzles and reduces maintenance time and labor as well as stops caused by nozzles.

Specifications

Item
Applicable nozzles NXT series, AIMEX series nozzles (H24, V12, H12, H12S, H12HS, H08, H08M, H04, G04, GL *1 ), XPF series, XP series, CP-8 series, CP-7 series, CP-6 series nozzles
Nozzle diameters φ0.3 to φ1.3 mm
Cleaning fluid Ultra-pure water (tank volume 1000 cc)Used amount: 50 *2 cc/h
Cleaning time: 1 second to 99 minutes 59 seconds (possible) (can change, recommended: 45 sec)
Number of nozzles 1 to 48 (possible)
Drying time 1 second to 99 minutes 59 seconds (possible) (can change, recommended: 15 sec)
Size, weight 300 x 510 x 440 mm (width x depth x height), 35 kg
Power supply AC 100 to 240 V
Air supply Air pressure 0.5 MPa

*1 Can clean the needles for GL heads.

*2 When using the recommended pressure settings of 0.4 MPa for jet pressure and 0.45 MPa for solution supply pressure. If the pressure settings are changed, the quantity of solution used is changed also.



*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
