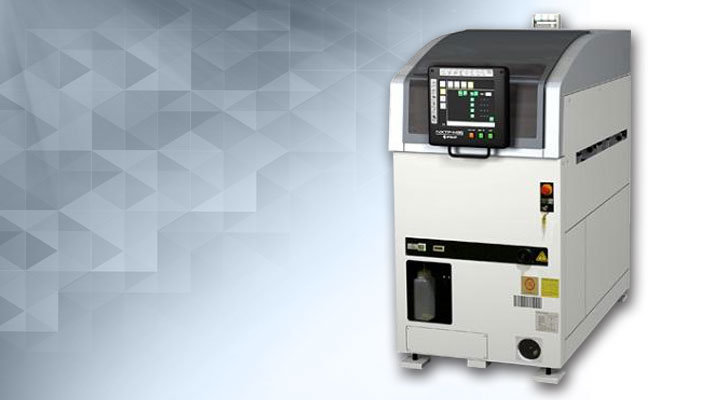

Intelligent and Compact Screen Printers

Extremely compact high tech printer optimal for dual lane non-stop production.


Smaller Footprint for Improved Productivity

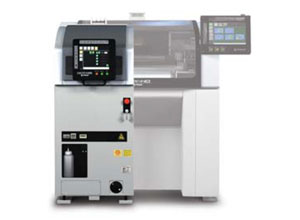

Our NXTP-25 is less than half the size of our GPX-HD, ensuring maximum use of factory space. Units can be positioned back-to-back for even greater space savings.

Non-Stop Dual Lane Production

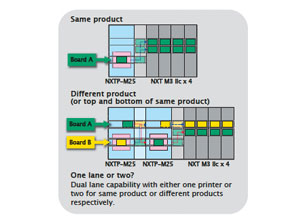

Dual lane support gives the NXTP the flexibility to meet all of your production needs. One printer can be used when producing the same panel in both lanes. Alternately, two printers can be installed side-by-side when producing different panels.

Stable, Accurate Printing

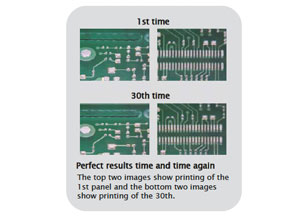

A more rigid body means less movement when printing and ensures higher quality and consistency.

Mask Vacuum Mechanism

The mask is secured by vacuum during printing to prevent any deviation of the position in relation to the panel. This also improves contact between the mask and the panel for improved printing quality.


Item NXTP-M25 NXTP-M35
Automatic solder supply unit Supports 500 g syringes by Iwashita Engineering Same as NXTP-M25
Thin panel support 0.3 to 0.4 mm (change belts and pulleys) Same as NXTP-M25
Panel clamp Clamp panel upper surface Same as NXTP-M25
Panel conveyors Lane 2 conveyor Same as NXTP-M25
Right side 300 mm wide shuttle conveyor Right side 400 mm wide shuttle conveyor
Left side 300 mm wide shuttle conveyor Left side 400 mm wide shuttle conveyor
Out conveyor buffer
(Panel size: 130 (L) x 170 (W) mm or less)
Panel support Backup pins Same as NXTP-M25
Vacuum backup pins Same as NXTP-M25
Panel vacuum backup pump Same as NXTP-M25
Adapter for GP-641/GPX backup plates Same as NXTP-M25
Base for maintenance when back-to-back Base for pulling forward the machine Same as NXTP-M25
Squeegee holder Adjustable angle urethane squeegee holder Same as NXTP-M25
Third-party cleaning paper support Supported with special paper holder Same as NXTP-M25
Transformers Multiple transformer (380V, 400V, 415V, 460V, 480V) Same as NXTP-M25
Internal temperature control Internal temperature adjusting unit (peltier type) Same as NXTP-M25
Signal tower Pole type signal tower Same as NXTP-M25
Applicable PCB size (LxW) 48 x 48 mm to 250 x 170 mm 48 x 48 mm to 350 x 300 mm
Printing speed 1 - 300 mm / second Same as NXTP-M25
Screen frame compensation accuracy +/-0.010 mm Same as NXTP-M25
PCB load time 5.0 seconds 5.5 seconds
Squeegee pressure control Print feedback control: print setting range 10 to 250 N Same as NXTP-M25
Screen frame 450 (L) x 450 (W) mm 550 (L) x 650 (W) mm
Squeegee type Double squeegee Same as NXTP-M25
Machine dimensions
Main bodyL: 650 mm, W: 1,420 mm, H: 1,517 mm
ConveyorL: 300 mm, W: 1,393 mm, H: 1,054 mm
Main bodyL: 750 mm, W: 1,420 mm, H: 1,517 mm
ConveyorL: 400 mm, W: 1,393 mm, H: 1,054 mm

*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
