Features

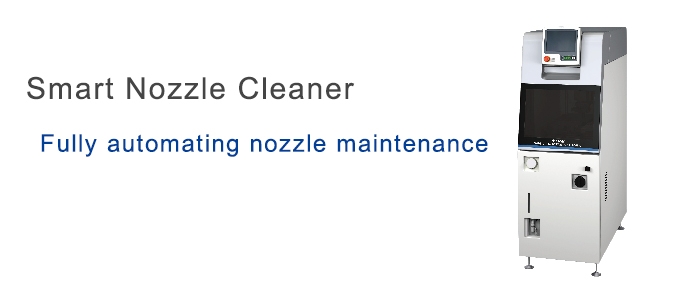

Automates nozzle cleaning, inspection, and setting

Smart Nozzle Cleaner does not just clean nozzles, it also inspects all nozzles automatically.

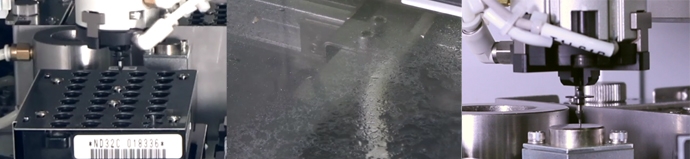

Just by inserting a nozzle station taken from a machine with the nozzles in it, the nozzles are automatically removed, cleaned and inspected.

Specifications

Item
Applicable machines NXT series, AIMEX series
Stations NA74A (H24G, H24), ND36A, ND32C, NS0ZA (V12, H12, HO8)
Applicable nozzles H24G, H24, V12, H12HS (Q), H08 (Q), H08M (Q), H04SF, H04S, H04, G04
Applicable nozzle diameters 0201 mm (008004”) nozzles, φ0.3 to φ3.7 standard nozzles
Cleaning fluid Ultra-pure water (tank volume 8 L)
Cleaning time App. 24 min. (40 nozzles / transfer + cleaning + inspection)
Size, weight W 455 x D 1000 x H 1420, 230 kg
Power supply AC 200 V
Air supply 0.35 to 0.5 Mpa

*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
