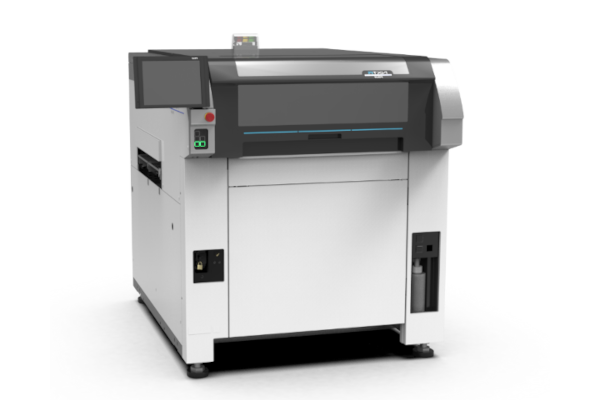

NXTR PM Solder Printing Machine
NXTR PM is a printer that embodies the NXTR concept of reducing line size, high area productivity, front operation, and ease of use. It is built to support wide panel and frame sizes, and has the capability to print delicate solder patterns.
Features
Hands-free changeover

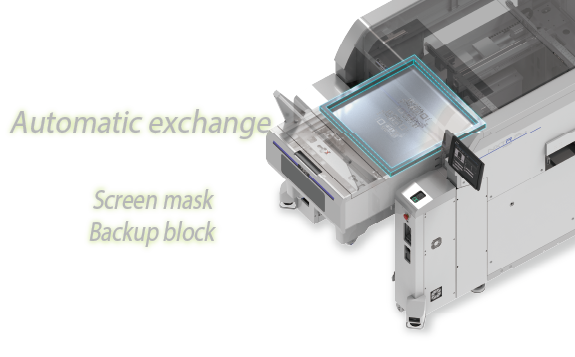

The PM Smart Changer makes it possible to automatically exchange screen masks and backup blocks. Setting materials in the rack in advance allows the Smart Changer to change the materials when changing the production model.
Changeover work such as collecting and supplying solder when exchanging screen masks, changing the conveyor width, and positioning backup blocks can be automated. This reduces the workload on operators and eliminates reworking that may result from human error.
* All are optional other than conveyor width adjustment
Non-stop material supply

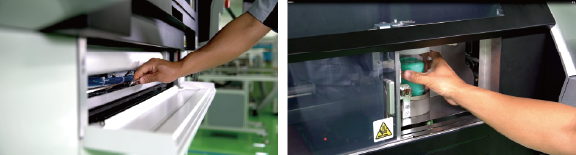

A high productivity rate can be maintained because solder cups for supplying solder paste can be set and cleaning paper can be exchanged during production.
Supports dual lane production

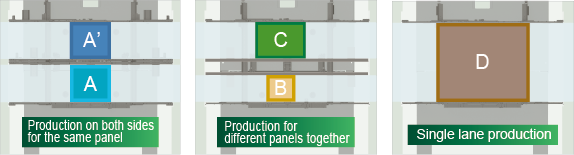

Dual lane production is supported, so that a highly efficient dual lane production line can be formed in minimal space when used together with the NXTR electronic component mounter.
